Specifications
| Customization | Available |
|---|
| Screen Size | 29 Inch |
|---|
| Aspect Ratio | 16:9 |
|---|
| Model NO. | CIN290AP-3K1-CNA2 |
|---|
| Application | GPS System |
|---|
| Screen Type | Infrared |
|---|
| Resistive Touch Screen Type | Infrared IR Touch Panel |
|---|
| Customized | Support Custom |
|---|
| Regular Size | 10inch~300inch |
|---|
| Interface | USB, RS232, Elo/3m Compatible |
|---|
| Touch Points | 1/2/4/6/10/16 Points Touch |
|---|
| Warranty | 3 Years |
|---|
| Usage | LCD Monitor, TV, Ads, Signage, Kiosk, Self Service |
|---|
| Drive | Free Drive, Plug and Play, Elo/3m Compatible |
|---|
| Characters | Vandalproof/Waterproof/Anti-Glare |
|---|
| OS | Windows7/8/10/XP/Android/Linux/iMac/Raspberry Pi |
|---|
| Certification | CE/FCC/RoHS/ISO9001/ISO14001 |
|---|
| Transport Package | 1/10/20PCS/Cartons |
|---|
| Trademark | CJTOUCH/THINKTOUCH |
|---|
| Origin | China |
|---|
| HS Code | 8471609000 |
|---|
| Production Capacity | 40000pieces/Month |
|---|
| Package Size | 67.00cm * 17.00cm * 17.00cm |
|---|
| Package Gross Weight | 8.000kg |
|---|
| Touch | 8ms ; Drawing : 8ms |
|---|
| No Glass or 3mm Vandalproof Glass,Transparence | 95% |
|---|
| Operating | -10 °C ~ 50 °C ; Storage:-30°C ~ 60 °C |
|---|
| Delivery time | Standard Dustproof Sample order 1-2 Days,Vandal proof/Anti-Glare type 2-4 Days. |
|---|
| Main Product | Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC, Kiosk and Accessories etc. |
|---|
| Category | Phones, Tablets & Displays |
|---|
| Manufacturer | Dongguan Cjtouch Electronic Co., Ltd. |
|---|
Detailed parameters
| MECHANICAL | Dong Guan CJTouch Electronic Co.,Ltd--- TouchScreen,Touch Monitor,Touch PC,Touch Foil,Kiosk 10 Years China Supplier |
|---|
| Housing | Aluminum frame |
|---|
| Touch Panel Size | 712*322mm |
|---|
| Active Area | 675*285mm |
|---|
| Input Method | Finger or Touch Pen(Support 1/2/4/6/10/16 points touch) |
|---|
| PositionAccuracy | 2mm |
|---|
| Resolution | 4096(W) × 4096(D) |
|---|
| Response Time | Touch: 8ms ; Drawing : 8ms |
|---|
| Glass | No Glass or 3mm Vandalproof Glass,Transparence : 95% |
|---|
| Touch Intensity | > 60,000,000 Single Touch |
|---|
| Voltage | DC 4.5V ~ DC 5.5V |
|---|
| Power | 1.0W (100mA at DC 5V) |
|---|
| Temperature | Operating:-10 °C ~ 50 °C ; Storage:-30°C ~ 60 °C |
|---|
| Humidity | Operating:20% ~85% ; Storage:0%~95% |
|---|
| Altitude | 3,000m |
|---|
| Interface | USB2.0,RS232,Serail full speed |
|---|
| Environment | Sunlight/Indoor/Outdoor/Vandalproof/Water/Industrial |
|---|
| OS | Windows7/8/10/XP/Android/Linux/iMac/Raspberry Pi |
|---|
| Drive | Free Drive, Plug and Play(ELO Touch,3M Compatible) |
|---|
| Warranty | 3 Years |
|---|
| Projected CapacitiveTouch Screen | IR Infrared Touch Panel Screen | SAW TouchScreen Panel |
|---|
| 4/5 Wire Resistive Touch Panels | PCAP Nano Touch Foil Touch Film | Resistive Touch Foil/Privacy Film |
|---|
| SAW Touch Monitors | ELO/3M Compatible Touch Monitors | P-cap Touch Monitor Display |
|---|
| IR Infrared Touch Display | Resistive Touch Display Monitor | Hight Brightness Monitors |
|---|
| Wall Mounted Touch Monitors | Desktop Touch Monitor | Industrial Monitors |
|---|
| Indoor Vandalproof Monitors | Outdoor Waterproof Anti Sun Monitor | Custom made Touch Monitors |
|---|
| Openframe/Embedded Touch PC | Wall mounted All in one Touch Computer | Desktop TouchScreen PC |
|---|
| Interactive Multimedial Kiosk | Self Service Terminal |
|---|
| Advertising Signage Displayer | Information/Queuing/Ticket/Ordering Equipment | Vending Machine |
|---|
| Touch All in one Computer PC | ATM,Payment or Bank Device | Touch Table,Touch TV |
|---|
| Electronic Education Whiteboard | Indoor/Outoor/Industrial/Commercial/Custom | AI/Intelligence Robot kiosk |
|---|
Description

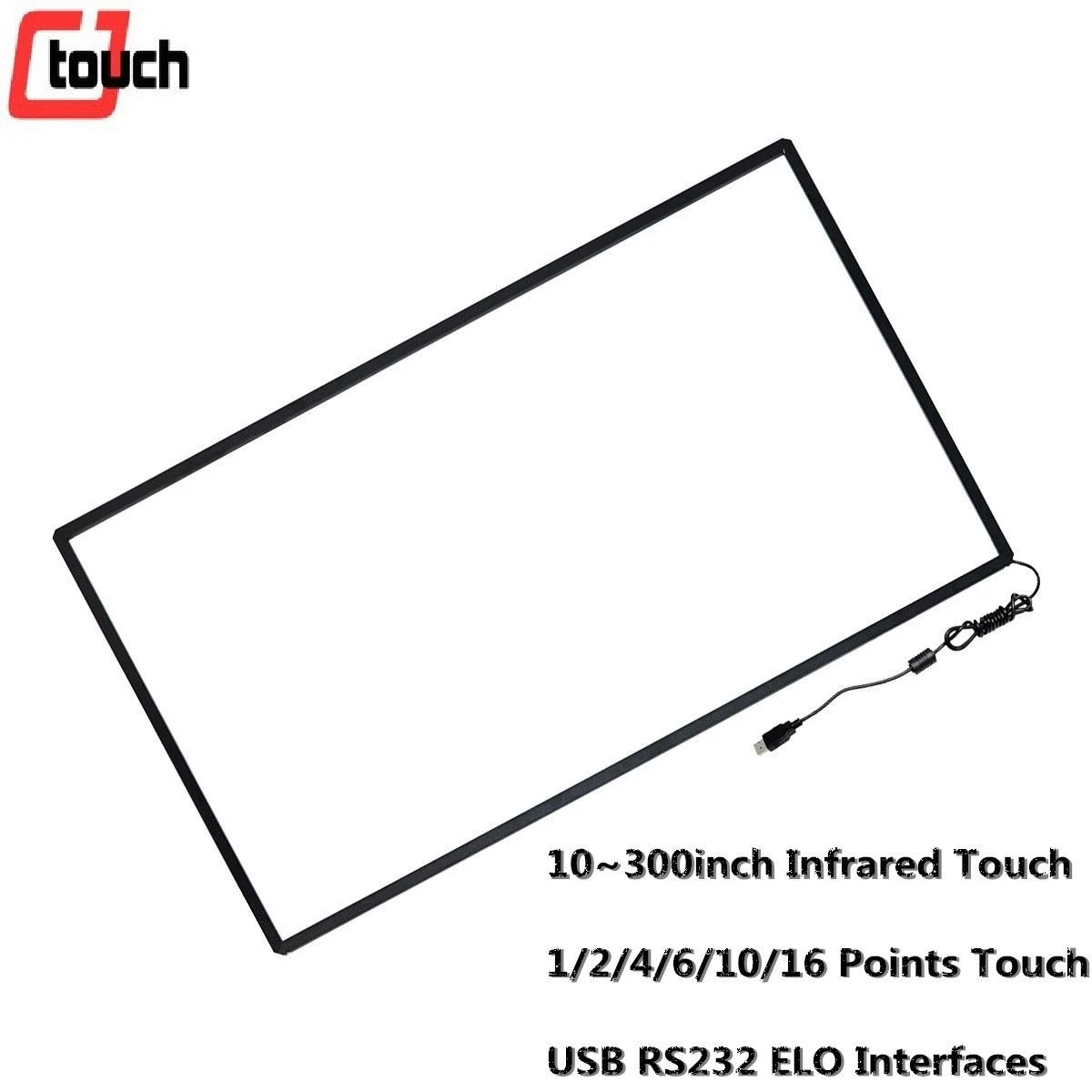

IR Touch Frame Interactive Whiteboard Tempered Glass Vandalproof 29″ Infrared Touchscreen Panels is listed in phones, tablets & displays (More Accessories).
Key details
- Interface: USB, RS232, Elo/3m Compatible
- Application: GPS System
- Screen Size: 29 Inch
- Certification: CE/FCC/RoHS/ISO9001/ISO14001
- Warranty: 3 Years
- Aspect Ratio: 16:9
- Screen Type: Infrared
- Resistive Touch Screen Type: Infrared IR Touch Panel
The supplier lists this product. Its stated application is GPS System. The listed model is CIN290AP-3K1-CNA2. The specifications reflect the information publicly displayed on the listing. Screen Size: 29 Inch. Model NO.: CIN290AP-3K1-CNA2. Regular Size: 10inch~300inch. Production Capacity: 40000pieces/Month. Package Size: 67.00cm * 17.00cm * 17.00cm. Package Gross Weight: 8.000kg.
Ordering through ToyBox UAE
Minimum order is 1 piece at US$43.00 – 48.00 per piece. Send one inquiry and ToyBox UAE confirms compatibility with your device, price, lead time and shipping with the factory, inspects the goods and delivers them to you in the UAE or abroad.
Request a quote for this product
