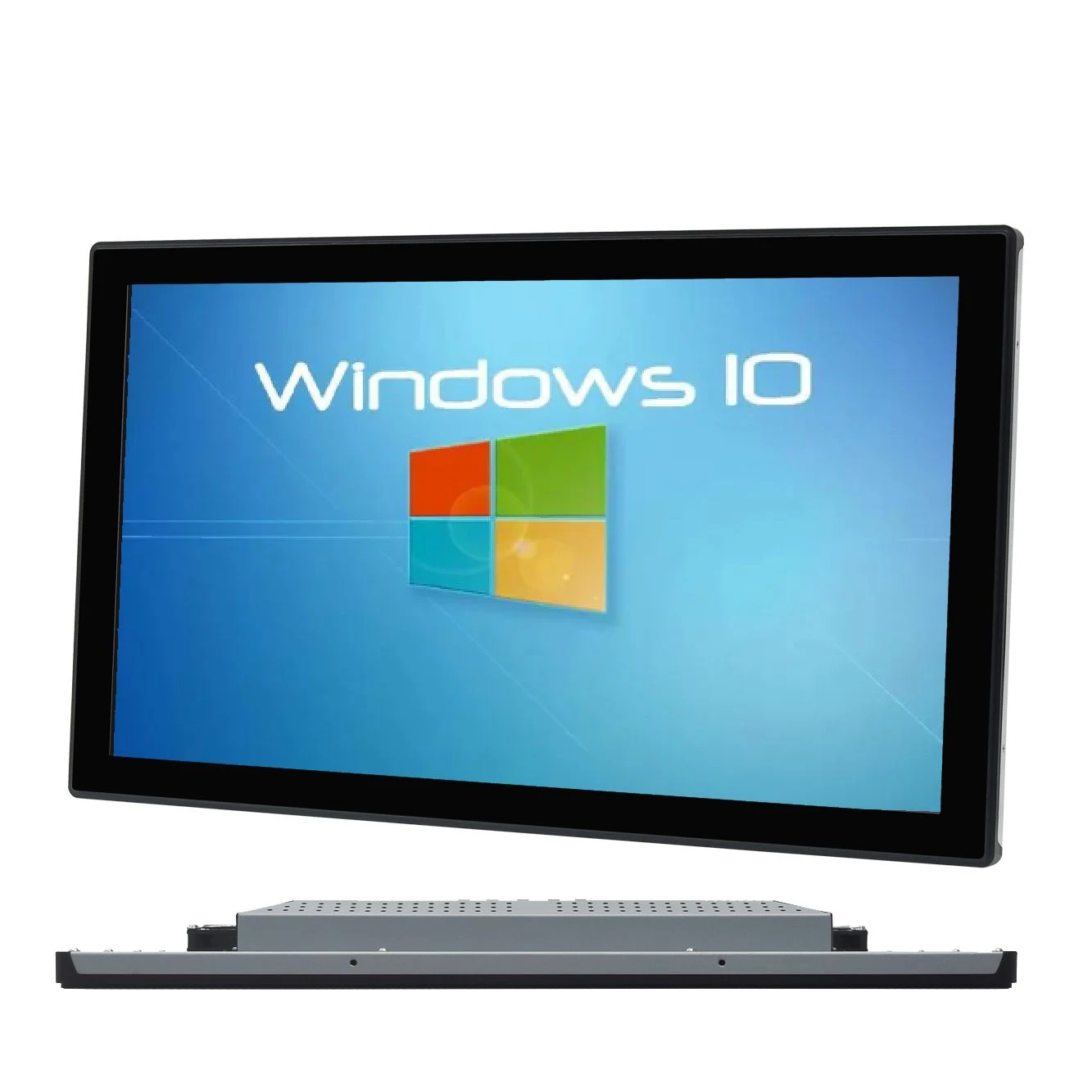

| Model | COT220-CLTF0-JSW |
|---|
| Series | L-Series LED Strip Light and Open frame |
|---|
| Color | Black with white LED strip light |
|---|
| Active Display Area | 473.76(W)×296.1(H) mm |
|---|
| Diagonal | 22" |
|---|
| Aspect Ratio | 16:10 |
|---|
| Dimensions | Outline dimension: 531.8mm x 357.2mm x 49.0mmFor other dimensions, please refer to the engineering drawing |
|---|
| Native Resolution | 1680(RGB)×1050, WSXGA+, 90PPI |
|---|
| Number of Colors | 16.7M , 73% NTSC |
|---|
| Touch Technology | PCAP (Projected Capacitive) - up to 10 touches |
|---|
| Brightness (typical) | LCD Panel: 250 nits; TouchPro PCAP: 200 nits |
|---|
| Response (typical) | 25 (Typ.)(Tr+Td) |
|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
|---|
| Contrast Ratio | 1000:1 |
|---|
| On-Screen Display | Accessible through switches on the unit's tethered OSD Control box.Controls: Menu, Up, Down, Select, PowerSettings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, OSD Timeout OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch ThroughLanguages: English,… |
|---|
| Video | Analog VGA on Female DB-15 connectorDVI-D digital signal, supporting single link and double linkHDMI V1.3 Type A receptacle for HDMI inputInput Video Horizontal Sync frequency range: 30 - 82KHzInput Video Vertical Sync (frame rate) frequency range: 50-75Hz |
|---|
| Power | External DC - power adapterMonitor input power signal specifications: 12VDC +/- 5% Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length) ,Power adapter length 1.8m (+/- 0.1m) |
|---|
| Power Consumption | ON (monitor + power brick): 33WSLEEP (monitor + power brick): 1.5WOFF (monitor + power brick): 0.5W |
|---|
| Temperature | Operating: 0 °C to 60 °C (32 °F to 140 °F); Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
|---|
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% |
|---|
| Dust-poof grade | Front grade IP65 |
|---|
| Impact resistance grade | IK-07 |
|---|
| Weight | Unpackaged: 7.1 kg; Packaged: 9.35 kg(Net weight and packaged weight are approximate value.) |
|---|
| Shipping Dimensions | 660mm x 170mm x 440mm(Single package: Length x Width x Height) |
|---|
| Mounting Options | Four-hole 75x75mm and 100x100mm VESA mount for M4 screws; 2-hole mounting interface on all 4 sides |
|---|
| Warranty | 1 year standard |
|---|
| MTBF | 30,000 hours demonstrated |
|---|
| Agency Approvals | FCC, CE |
|---|
| What's in the Box | HDMI Cable, Touch USB Cable, Mount Brackets , Screws, Power adapter , Power Cable |
|---|
