Specifications
| Model NO. | CIN185AP-3K-CNA2 |
|---|
| Application | Industrial Control System |
|---|
| Screen Type | Infrared |
|---|
| Resistive Touch Screen Type | Infrared IR Touch Panel |
|---|
| Customized | Support Custom |
|---|
| Regular Size | 10inch~300inch |
|---|
| Interface | USB, RS232, Elo/3m Compatible |
|---|
| Touch Points | 1/2/4/6/10/16 Points Touch |
|---|
| Warranty | 3 Years |
|---|
| Usage | LCD Monitor, TV, Ads, Signage, Kiosk, Self Service |
|---|
| Drive | Free Drive, Plug and Play, Elo/3m Compatible |
|---|
| Outframe | Aluminum/Vandalproof, Waterrpoof, Anti Sun) |
|---|
| Characters | Vandalproof/Waterproof/Anti-Glare |
|---|
| OS | Windows7/8/10/XP/Android/Linux/iMac/Raspberry Pi |
|---|
| Certification | CE/FCC/RoHS/ISO9001/ISO14001 |
|---|
| Transport Package | 1/10/20PCS/Cartons |
|---|
| Trademark | CJTOUCH/THINKTOUCH |
|---|
| Origin | China |
|---|
| HS Code | 8471609000 |
|---|
| Production Capacity | 40000pieces/Month |
|---|
| Package Size | 52.00cm * 44.00cm * 17.00cm |
|---|
| Package Gross Weight | 8.000kg |
|---|
| Customization | Available |
|---|
| Screen Size | 18.5 Inch |
|---|
| Aspect Ratio | 16:9 |
|---|
| Shipping Cost | Freight and delivery time are quoted with your inquiry. |
|---|
| Touch | 6ms |
|---|
| Drawing | 6ms |
|---|
| Anti -Static Discharge (Standard | B) |
|---|
| Delivery time | Standard Dustproof Sample order 1-2 Days,Vandal proof/Anti-Glare type 2-4 Days. |
|---|
| Main Product | Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC, Kiosk and Accessories etc. |
|---|
| Category | Phones, Tablets & Displays |
|---|
| Manufacturer | Dongguan Cjtouch Electronic Co., Ltd. |
|---|
Detailed parameters
| P/N | CIN Slim series |
|---|
| Overlay Thickness | 7.9 mm |
|---|
| Overlay Frame Width | 18.5 mm |
|---|
| Housing | Aluminum frame/ Plastic frame |
|---|
| Input Method | Finger or touch pen |
|---|
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
|---|
| Touch Activation Force | Non Minimum activation force |
|---|
| Position Accuracy | 1mm |
|---|
| Resolution | 4096(W)×4096(D) |
|---|
| Response Time | Touch: 6ms |
|---|
| Cursor Speed | 120 dot/sec |
|---|
| Glass | 3mm glass Transparency : 92% |
|---|
| Object Touch Size | ≥ Ø5mm |
|---|
| Touch Intensity | Over 60 millions single touch |
|---|
| Operating Voltage | DC 4.5V ~ DC 5.5V |
|---|
| Power | 1.0W (100mA at DC 5V) |
|---|
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
|---|
| Temperature | operating:-10 °C ~ 60 °C |
|---|
| Humidity | operating:20% ~85% |
|---|
| Relative Humidity | 40 °C,90% RH |
|---|
| Anti - glare Test | Incandescent lamp (220V,100W) , |
|---|
| Altitude | 3,000m |
|---|
| Interface | USB2.0 full speed |
|---|
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
|---|
| Working Environment | Directly Under sunlight ,indoor and outdoor |
|---|
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
|---|
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
|---|
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
|---|
| VID | 1FF7 |
|---|
| PID | 0 013 |
|---|
Description

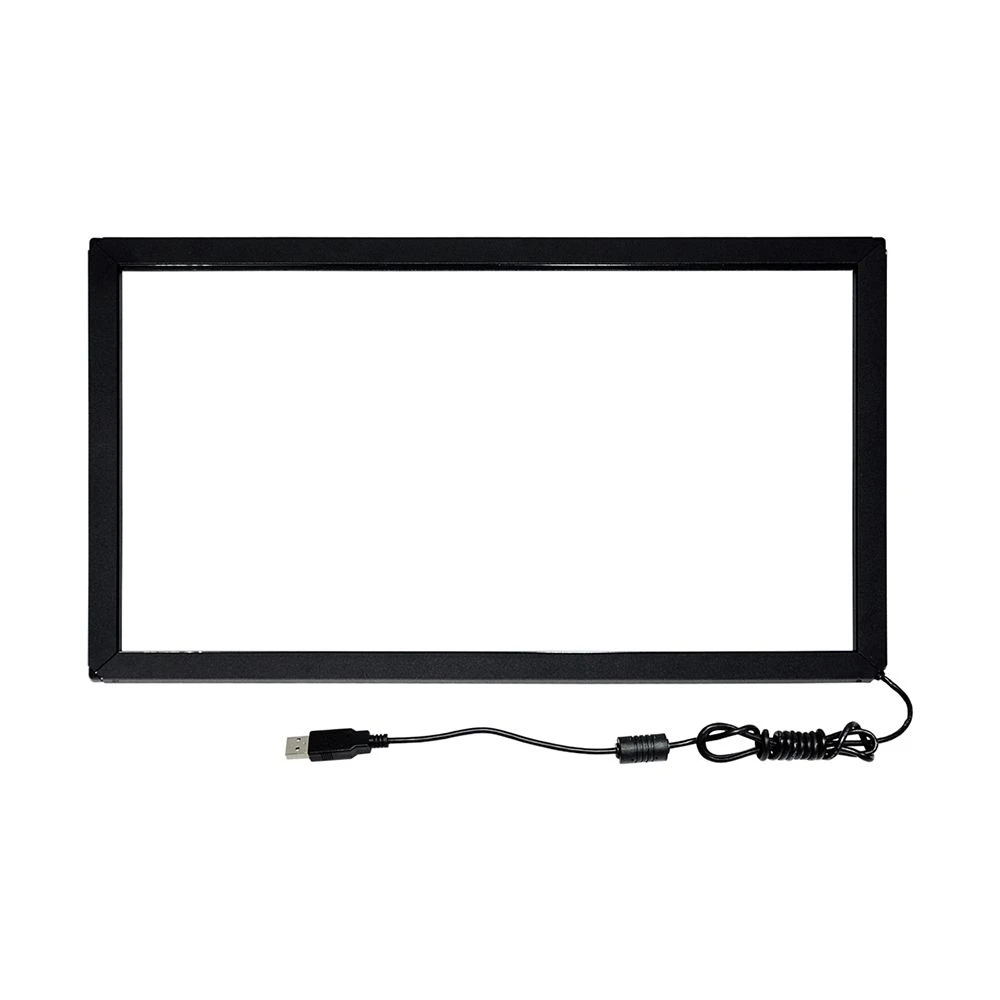

18.5 Inch Infrared Touch Screen Panel 18.5″ IR Touch Frame with USB RS232 Touchscreens 4 6 Points 3m Elo Compatible Cjtouch is listed in phones, tablets & displays (More Accessories).
Key details
- Interface: USB, RS232, Elo/3m Compatible
- Application: Industrial Control System
- Screen Size: 18.5 Inch
- Certification: CE/FCC/RoHS/ISO9001/ISO14001
- Warranty: 3 Years
- Screen Type: Infrared
- Resistive Touch Screen Type: Infrared IR Touch Panel
- Customized: Support Custom
The supplier lists this product. Its stated application is Industrial Control System. The listed model is CIN185AP-3K-CNA2. The specifications reflect the information publicly displayed on the listing. Model NO.: CIN185AP-3K-CNA2. Regular Size: 10inch~300inch. Production Capacity: 40000pieces/Month. Package Size: 52.00cm * 44.00cm * 17.00cm. Package Gross Weight: 8.000kg. Screen Size: 18.5 Inch.
